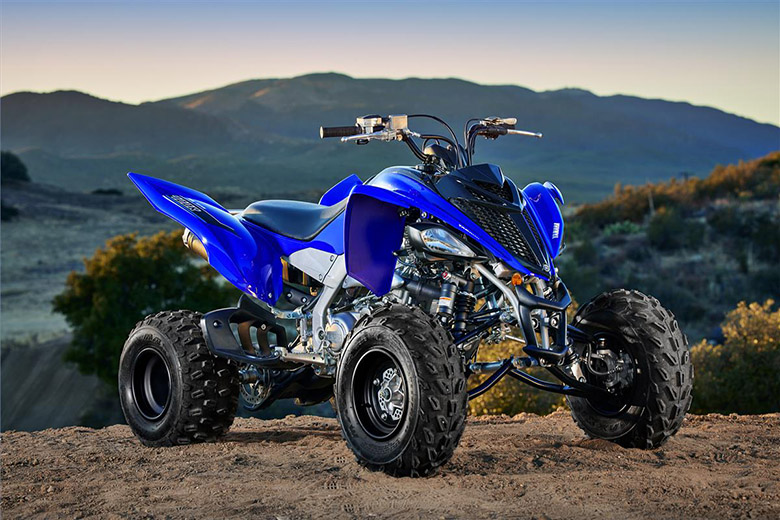

The new Yamaha 2021 Raptor 700R Sports Quad Bike is the most popular, best-looking, most comfortable, and most powerful ATV of all time.
Yamaha 2021 Raptor 700R Sports Quad Bike – Features and Price
Top Features
The Raptor 700R’s aggressive design makes it seem as threatening as it is. Whether you’re heading to the dunes, the trails, or the track, the Raptor 700R is ready to go.
This large bore sport ATV is powered by our most potent 686cc liquid-cooled, fuel-injected Raptor engine ever, producing enormous torque right off the line, moving into a fat mid-range and monster top-end. The Raptor 700R comes equipped with immense power and is lightweight, a combination that makes any ATV rider pay note. This combination of a hybrid steel aluminum frame, Controlled-Fill aluminum sub-frame, and cast aluminum swingarm results in the strongest and lightest ATV in its class.
The twin counterbalancers, electric starting, and reverse make things friendly and polite when required, but when it’s time to draw the trigger, the Raptor 700R stands tall. The Raptor 700R’s YFZ-inspired handling is fantastic to see when tearing through the woods. The trail bumps are smoothed out thanks to the 9.1 inches of front travel and 10.1 inches of rear travel while the rider maintains control. This bike must be experienced to be genuinely understood, with its mix of power, good handling, and excellent suspension.
Engine
The 686cc engine’s forged lightweight piston, connecting rod, and crankshaft are light and robust for a hard-hitting, quick-revving motor that revs to 9000 rpm while being kept smooth by twin counterbalancers. In various situations, altitudes, and temperatures, the Yamaha Fuel Injection (YFI) delivers consistent and outstanding engine performance.
For consistent performance and excellent throttle response, the digital TCI with a 32-bit electronic control unit regulates fuel injection and ignition systems. Electric start with a press of a button in any gear adds to the convenience.
With the Raptor 700R’s enormous powerband and race-bred five-speed gearbox with reverse, there’s a gear for almost any scenario. The heavy-duty clutch includes a strong basket and plates intended to harness the power, while the YZ-spec ratchet shifter guarantees smooth, resistance-free shifting under authority. A tool-free air filter and an easy-to-reach oil filter add to the convenience.
Chassis/Suspension

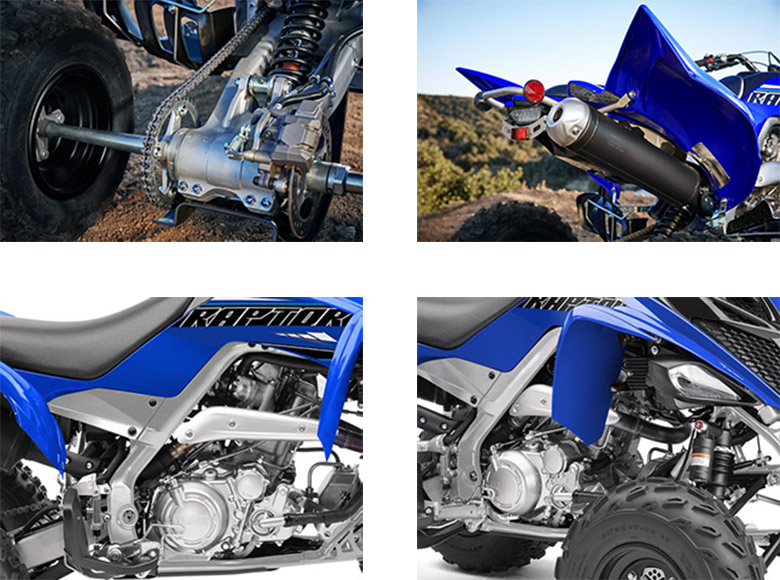

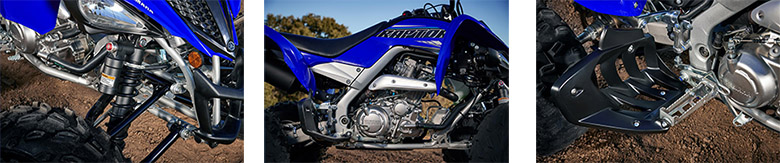

The cutting-edge chassis has a steel front tube and a YZ-style piggyback rear shock with preload adjustability and 10.1-inch wheel travel. YZ-style piggyback shocks are entirely adjustable, including high- and low-speed compression adjustment, as well as preload and rebound adjustment, for maximum sports flexibility. The front shock offers 9.1 inches of wheel travel, while the rear shock gives 10.1 inches. Front disc brakes with dual aluminum pistons provide excellent stopping force. Drilled discs assist decrease unsprung weight for better suspension compliance, while a twin-piston rear brake offers optimum stopping force.
With a specifically developed tread pattern, high-performance front 22×10-9 and rear 20×10-9 Maxxis® tires provide excellent, class-leading traction for razor-sharp handling in various terrain and situations. Aluminum wheels are lightweight and assist in improving suspension performance by decreasing unsprung weight. Serrated 45mm footpegs, inspired by racetracks, offer exceptional boot traction. The lightweight Controlled-Fill aluminum subframe and composite front grip bar are both robust and light.
Additional Features
With excellent sport-riding ergonomics, the long, YZ-style seat provides maximum rider comfort and mobility. Set back in the front cowl, multi-reflector 30-watt Krypton headlights offer the ideal, no-compromises sporty flair, and an LED taillight provides excellent visibility.
More time on the trail between fill-ups thanks to the large-capacity 2.9-gallon gasoline tank with Yamaha Fuel Injection (YFI). The smooth-shaped thumb throttle lever provides a comfortable feel for riders, reducing tiredness at the end of the day, while the handlebar-attached flip-type parking brake lever is easy to operate. The Raptor 700R is Yamaha Diagnostic Tool-ready for enhanced serviceability. The Raptor 700R is proudly made in the United States.
Yamaha 2021 Raptor 700R Sports Quad Bike – Price
The new Yamaha 2021 Raptor 700R Sports Quad Bike is available at $9,099 in the Team Yamaha Blue color option.
Yamaha 2021 Raptor 700R Sports Quad Bike – Technical Specifications
Engine
| Engine Type | 686cc liquid-cooled SOHC 4-stroke; 4 valves |
| Bore x Stroke | 102.0mm x 84.0mm |
| Compression Ratio | 10.0:1 |
| Fuel Delivery | Yamaha Fuel Injection (YFI), 44mm |
| Ignition | TCI: Transistor Controlled Ignition |
| Starting System | Electric |
| Transmission | 5-speed w/reverse; wet multi-plate clutch |
| Final Drive | X-ring chain; 2WD |
Chassis
| Suspension / Front | Independent double-wishbone with piggyback high/low-speed compression, rebound and threaded preload adjustment, 9.1-in travel |
| Suspension / Rear | Cast aluminum swingarm with piggyback high/low-speed compression, rebound and threaded preload adjustment, 10.1-in travel |
| Brakes / Front | Dual hydraulic disc |
| Brakes / Rear | Hydraulic disc |
| Tires / Front | AT22 x 7-10 Maxxis® |
| Tires / Rear | AT20 x 10-9 Maxxis® |
Dimensions
| L x W x H | 72.6 inches x 45.5 inches x 43.9 inches |
| Seat Height | 32.7 inches |
| Wheelbase | 50.4 inches |
| Maximum Ground Clearance | 9.5 inches |
| Fuel Capacity | 2.9 gallons |
| Wet Weight | 422 lb |
| Lighting | Dual 30W Krypton headlights and an all-new LED brake light |
Other
| Warranty | 6-Month (Limited Factory Warranty) |
Conclusion
In the end, team Bikes Catalog would love to say that the new Yamaha 2021 Raptor 700R Sports Quad Bike is an impressive quad bike that comes with a a powerful 686cc engine. The ATV has got attractive chassis design with impressive graphics. The seat design helps in getting maximum rider movement while the handlebars give maximum control in the hands of the rider. The suspension system offers superior damping force, and the braking system ensures that riders always receive progressive stopping force.
