The KingQuad 2019 Suzuki 500AXi Power Steering SE Utility ATV is not just a new ATV; it’s a brand new KingQuad ATV. Suzuki is the inventor of the 4-wheel ATV. Suzuki took the world’s exceptional sports-software quad and made it higher and more capable than ever. An all-new edgy and dynamic bodywork surrounds an outstanding list of updates to the KingQuad. The KingQuad’s chassis, primarily based around a more potent new frame. It enables this ATV tackle just about any using terrain while being able to help you with any chore, thanks to the new boosted the towing potential of 1,332 pounds.
Steering a KingQuad has never been less complicated with a brand new, higher output Electronic Power Steering gadget and recalibrated front-end geometry. The fully-independent suspension is attached with the new, gas-charged shocks, which might be pre-load adjustable to suit the spring charge to the cargo load. A new, beefier stabilizer bar having more compliant bushings allows manipulation of the chassis movement. While the new, cast-aluminum wheels shod with 25-inch Carlisle tires deliver top-notch grip. All the other outstanding KingQuad features and innovations are packed into everyone we build in our Rome, Georgia production plant.
KingQuad 2019 Suzuki 500AXi Power Steering SE Utility ATV – Features and Price
Key Features
All-new styling & bodywork design, new, better trim Levels, together with models with new cast-aluminum wheels, a wider variety of colors. Increased towing potential (as much as 1322 lbs.) and less difficult to ride on any terrain, more durable frame.
More durable and smoother acceleration, more exceptional engine Braking, full emissions compliance. New fender- and handlebar-hooked up lights. A New LED dash is less complicated to read with service reminders, fender-mounted power outlets.
Engine Features
The active 493 ccs, SOHC, single-cylinder, liquid-cooled, 4-stroke engine is tuned to produce a broad powerband with muscular top-stop strength. The cylinder of KingQuad 2019 Suzuki 500AXi Power Steering SE Utility ATV is canted forward for a low center of gravity, resulting in decreased engine height and reduce the seat peak. The engine also contains a balancer shaft for clean operation. High-potential aluminum radiator with large diameter, thermostatically controlled cooling fan provides robust engine running a temperature.
The compact 4-valve cylinder head has large consumption valves and straight intake ports for extraordinary cylinder charging efficiency. A lightweight aluminum cylinder makes use of SCEM (Suzuki Composite Electrochemical Material) coating for first-rate warmth transfer and ring sealing. It ensures high-quality combustion chamber efficiency.
Advanced Suzuki Fuel Injection improves throttle reaction and fuel efficiency even as delivering energy consistently across the overall rev-variety. It improves the engine beginning in all conditions while the new KingQuad effortlessly achieves US emissions compliance, such as California models. It complies with the state’s stringent evaporative emissions standard (eligible for new decal registration).
Transmission Features
The Quadratic CVT-type automatic transmission affords versatility and comfort with a fender-installed gate-type shifter for high/low range choice. Its advanced engine-braking gadget minimizes free-wheeling with the throttle off and helps control the vehicle throughout steep descents.
A compact torque-sensing restricted-slip the front differential offers powerful traction plus mild guidance. A differential-lock gadget gives extreme 4-wheel drive traction while the new handlebar-established push-button controls allow a smooth choice among 2WD, four-wheel drive, and differential-lock 4-wheel drive. An override button at the left handlebar can be used to override the regular velocity limiter when stuck within the mud.
Chassis Features
The base steering characteristics are uniquely tuned to an “under-steer” circumstance for the decreased attempt and tighter handing over tight conditions. It permits better, more cushy handlebars to be used. The KingQuad’s new, advanced magnetic strength steering machine has a higher potential than ever.
The bold, new bodywork functions high-clearance fenders that offer excellent safety for the rider from flying debris. Refined panels simplify preservation needs, which include oil stage checks, gas, and air filter carrier. Independent double A-arm the front suspension (6.7 inches of wheel travel) includes new large diameter, gas-charged surp.
An all-new fully independent, A-arm/I-beam rear suspension was containing a wheel travel of 7.7 inches that consists of a new massive diameter. Gas-charged surprises absorbers with five-way spring preload adjustment. An all-new, larger diameter rear stabilizer bar with extra compliant bushings facilitates manage frame movement at the same time as reducing shocks to the rider of KingQuad 2019 Suzuki 500AXi Power Steering SE Utility ATV.
The twin hydraulic the front disc brakes have new brake pad material, fluid traces, and lever to optimize braking performance. The sealed, multi-plate rear brake gadget functions a brand-new foot brake lever ratio for more excellent rider manipulation. The rear brake’s clutch-kind design affords extreme durability, decreased unsprung weight, and low renovation.

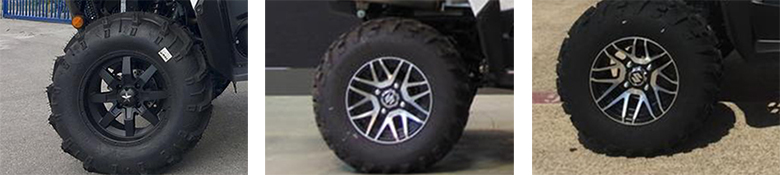

High traction 25-inch CARLISLE tires are installed on new, lightweight, reliable aluminum wheels. Suzuki’s plush T-fashioned seat promises rider mobility in the course of lively or tough terrain riding. Polyethylene skid plates protect with minimal resistance over rocks and rough terrain. The sturdy plastic guards protect the front and rear 1/2 shafts.
Utility / Convenience Features
The new 35W handlebar-installed headlight illuminates the trail inside the direction you are steering the ATV. Dual 35W headlights (with excessive and occasional settings) are part of the new, extraordinary KingQuad bodywork. A new, low-draw and vivid LED tail mild helps make the ATV visible in dark situations at the same time as conserving power.
A new, wholly redesigned multi-characteristic tool panel has progressed appearance and visibility. The instrumentation includes LCD readouts for odometer, speedometer, twin trip meter, hour meter, clock, gas level, driving range, and power mode. LED signs for excessive, low, neutral, reverse and 2WD/4-wheel drive and differential-locked four-wheel drive. LED cautions for fuel injection and new engine temperature.
High-output, 3-section charging machine feeds an 18-amp renovation-free battery for abundant energy for easy starting and accent use. A sealed 12V accessory outlet is standard. The big 4.6 gallons (17. five L) gas tank is located for a low center of gravity. KingQuad 2019 Suzuki 500AXi Power Steering SE Utility ATV consists of a vacuum-operated petcock and the new ratchet-style filler cap (which prevents overtightening. So, it can be without difficulty unscrewed for refilling).
A new, massive 4.0-liter storage compartment is centrally brought to the rear of the ATV adjacent to the present 4.0-liter left-facet chamber to increase cargo capacity. The 2.8-liter water-proof, the front storage compartment consists of a smooth get right of entry to a screw-on cap. The new rugged steel-tube cargo racks have wrinkle paint end for durability and scratch resistance.
Full floorboards with included raised footpegs to provide protection. A sort of Suzuki Genuine Accessories is available, which include winches, windshield, front, and rear bumpers. A new quick-launch snow plow, aluminum skid pans, rack extensions, utility container, and much more available. An all-new receiver-type trailer hitch mount makes it easy to pick the type of system you need to transport with the KingQuad’s higher towing capacity (as much as 1322 lbs.). Winch-equipped mounts and cord conduit make winch set up simple.
Utility/Convenience Features
Warranty: 12-month restrained warranty
Minimum Operator Age: 16 Years Old
KingQuad 2019 Suzuki 500AXi Power Steering SE Utility ATV – Price
The new 2019 KingQuad 500 AXi Power Steering SE is available in $8,899 only.
KingQuad 2019 Suzuki 500AXi Power Steering SE Utility ATV – Technical Specifications
Engine
| Engine | 493 cc (30.1 cubic inches) 4-stroke, liquid-cooled, 4-valve, OHC, single-cylinder |
| Bore x Stroke | 87.5mm x 82mm (3.4inches x 3.2inches) |
| Compression Ratio | 9.9: 1 |
| Fuel System | Suzuki electronic fuel injection |
| Starter | Electric |
| Lubrication | Wet sump |
Drive Train
| Transmission | Automatic variable ratio (V-belt), having high/low-range & reverse |
| Clutch | Dry shoe, automatic, centrifugal type |
| Driven Wheels | 2WD, 4WD, and 4WD differential lock |
| Final Drive | Shaft drive |
Chassis
| Suspension Front | Independent, double wishbone, coil spring, gas-charged and oil damped with 5-way preload adjustable shock absorbers |
| Suspension Rear | Independent, double wishbone, coil spring, gas-charged and oil damped with 5-way preload adjustable shock absorbers |
| Brakes Front | Disc brakes, twin rotors |
| Brakes Rear | Sealed oil-bathed multi-disc |
| Tires Front | AT25 x 8-12, tubeless type x 2 |
| Tires Rear | AT25 x 10-12, tubeless type x 2 |
| Fuel Tank Capacity | 4.6 US gal. (17.5 L) |
| Color | Solid Special White |
Electrical
| Tail Light | LED |
| Ignition | Electronic ignition(transistorized) |
| Headlight | 12V 35/35Wx2 fender-mounted, 12V 35Wx1 handlebar-attached |
Dimensions
| Overall Width | 47.8 inches (1,215mm) |
| Overall Length | 84.6 inches (2,150mm) |
| Overall Height | 50.6 inches (1,285mm) |
| Wheelbase | 50.6 inches (1285mm) |
| Ground Clearance | 10.2 inches (260 mm) |
| Seat Height | 36.2 inches (920 mm) |
| Curb Weight | 710 lbs. (322 kg.) |
Warranty
| Warranty | The 12-month unlimited-mileage limited warranty |
| Extensions | Coverage extension and additional benefits are available |
Conclusion
The legacy of the long-lasting KingQuad has a new and exciting bankruptcy. It is ready with a purpose to join the narrative. KingQuad 2019 Suzuki 500AXi Power Steering SE Utility ATV features new shock absorbers and stabilizer bar, refined brake, and easier manipulate via up to date steering calibration & higher-ability energy steerage.
