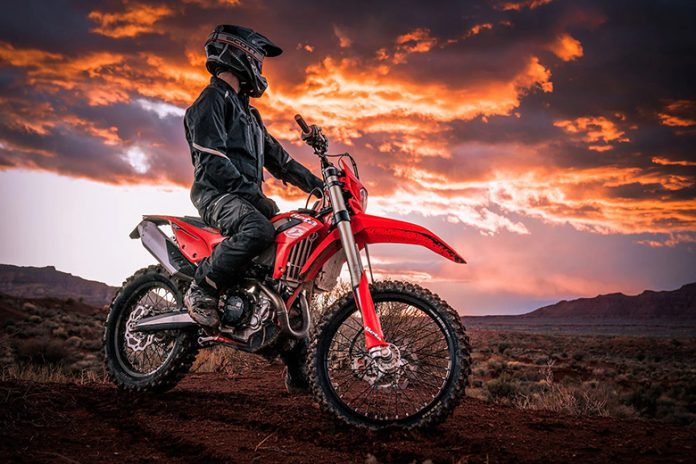

The new Beta 2023 RR Racing 4T 430 Dirt Motorcycle is an outstanding off-road motorcycle ideal for riders who prefer more extensive displacement motorcycles. Additionally, the bike uses user-selectable electronic engine management maps that optimize the overall riding experience. The review of the Beta 2023 RR Racing 4T 430 Dirt Motorcycle with its specifications is given below.
Beta 2023 RR Racing 4T 430 Dirt Motorcycle – Features and Specs
Engine Features
The new Beta 2023 RR Racing 4T 430 Dirt Motorcycle features a 430.9ccm, single-cylinder, liquid-cooled, and four-stroke engine that offers abrupt power delivery better than the 2020 Beta RR Racing 4T 430. The fuel system of RR Racing 4T 430 comprises injection and Synerject dual electronic injection. The 6-speed gearbox offers a unique gear-shifting experience.
Chassis Features
The Beta 2023 RR Racing 4T 430 Dirt Motorcycle features molybdenum steel, including a double cradle split above the exhaust port. The suspension system comprises a KYB hydraulic USD fork with a 48mm shaft in the front while a KYM mono shock with a progress compound lever in the rear. The braking system features a single disc on both wheels.
Also Read:Â Beta 2023 RR Racing 4T 390 Off-Road Bike Review
Beta 2023 RR Racing 4T 430 Dirt Motorcycle – Technical Specifications
Engine and transmission
| Displacement | 430.9 ccm (26.29 cubic inches) |
| Engine type | Single-cylinder, four-stroke |
| Engine details | Titanium valves |
| Compression | 12.3:1 |
| Bore x stroke | 95.0 mm x 60.8 mm (3.7 inches x 2.4 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Synerject dual electronic injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Kokusan |
| Lubrication system | Two oil pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc |
| Fuel consumption | 3.89 liters/100 km (25.7 km/l or 60.47 mpg) |
| Greenhouse gases | 90.2 CO2 g/km. (CO2 – Carbon dioxide emission) |
Chassis, suspension, brakes and wheels
| Frame type | Molybdenum steel with a double cradle split above the exhaust port |
| Front Suspension | KYB hydraulic USD fork with 48mm shaft |
| Front-wheel travel | 295 mm (11.6 inches) |
| Rear Suspension | KYB mono-shock with progressive compound lever |
| Rear wheel travel | 290 mm (11.4 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc. 2-piston calipers |
| Diameter | 255 mm (10.0 inches) |
| Rear brakes | Single disc. 1-piston calipers |
| Diameter | 240 mm (9.4 inches) |
Physical measures and capacities
| Dry weight | 108.5 kg (239.2 pounds) |
| Seat height | 940 mm (37.0 inches). If adjustable, lowest setting. |
| Overall height | 1270 mm (50.0 inches) |
| Overall length | 2180 mm (85.8 inches) |
| Overall width | 815 mm (32.1 inches) |
| Ground clearance | 320 mm (12.6 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Reserve fuel capacity | 2.30 litres (0.61 US gallons) |
Other specifications
| Color options | Red/blue/white |
| Starter | Electric |
Conclusion
The new Beta 2023 RR Racing 4T 430 Dirt Motorcycle features a 430.9ccm engine responsible for more excellent power delivery, while the fuel system features Synerject dual electronic injection. The robust molybdenum steel frame offers the highest level of stability. The suspension and braking systems are optimized carefully to ensure better performance during off-road riding.
