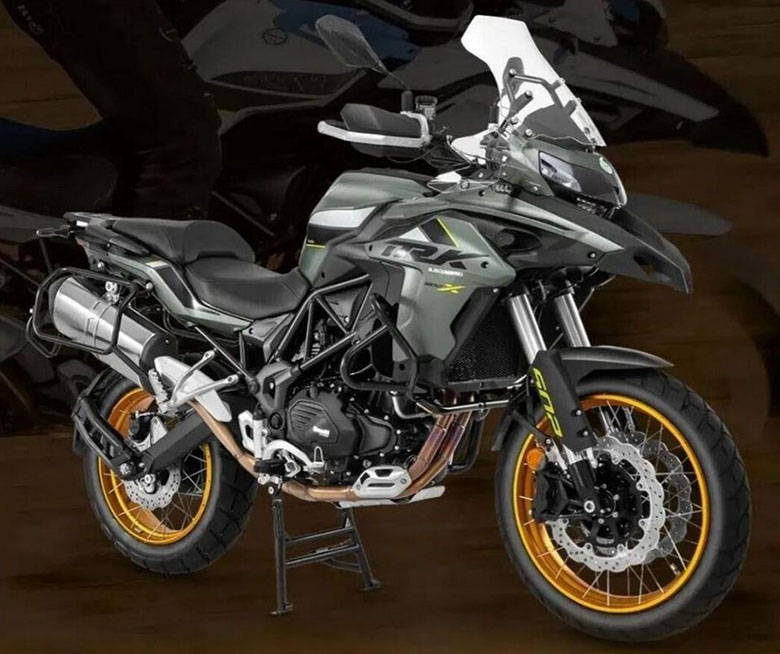

The new Benelli 2023 TRK 502 Adventure Bike is another impressive motorcycle by Benelli. The maximum power is 48CV (35 kW) at 8500rpm, and the torque is 45Nm (4,6 kgm) at 4500rpm, meaning perfect response in all conditions. The suspension offers maximum comfort for rider and passenger, thanks to an adjustable upside-down front fork and, at the rear, a swingarm with mono-shock. One can have a look at the comparison review of Honda CB500X vs Benelli TRK 502.
Benelli 2023 TRK 502 Adventure Bike – Features and Specs
Engine and transmission
With a 499.6ccm engine, the new Benelli 2023 TRK 502 Adventure Bike can produce a powerful 47.6 HP @ 8500 RPM. Its 45.0 Nm of torque at 5000 RPM guarantees reliable operation. It is designed for efficiency, with four valves per cylinder and a compression ratio of 11.5:1.
Also Read: Benelli TRK 502X 2023 Adventure Motorcycle Review
Fuel management is optimized with Double Overhead Cams and the electronic fuel injection system. With just 90.5g/km of CO2 emissions, it satisfies Euro 4 emissions regulations owing to oxygen sensors and a catalytic converter. This motorbike has a good mix of efficiency, power, and environmental friendliness better than 2022 Benelli TRK 502.
Chassis, Suspension, Brakes and Wheels
Like Benelli TRK 502X 2023, the sturdy steel tube trestle structure of the Benelli 2023 TRK 502 Adventure Bike offers durability and stability. With a 50mm diameter and adjustable upside-down forks, the front suspension can be precisely tuned. On various terrains, its 135mm of front wheel travel provides exceptional shock absorption.
Adjustable spring preload is made possible by the swing arm with a central shock absorber used in the rear suspension. For a pleasant ride, the rear wheel travel is 45mm. Carefully chosen for the best handling and traction, the rear tire is 160/60-ZR17, while the front is 120/70-ZR17.
The front of the vehicle is equipped with ABS and twin disc brakes with 4-piston calipers with a sizable 320mm diameter. Effective stopping force is provided by a single disc brake with a single-piston caliper and ABS at the back, measuring 260mm in diameter.
The Benelli 2023 TRK 502 Adventure Bike comes with solid aluminum alloy wheels, but for a unique style, aluminum rim spoked wheels are also an option. With an emphasis on both performance and safety, these elements help to provide a responsive and well-balanced riding experience.
Physical Measures and Capacities
With a dry weight of 213 kg, this motorbike has an excellent power-to-weight ratio of 0.2235 HP/kg. When the seat height is lowered to its lowest position, it is 800 mm, guaranteeing a convenient and comfortable riding position.
There is also an alternative option of 825 mm for individuals who want to be at a higher place. It has a well-proportioned profile with dimensions of 912 mm (35.9 inches), a length of 2170 mm, and a total height of 1235 mm. With 190 mm of ground clearance, you can confidently go across various terrains. During rides, the 1525 mm wheelbase helps with balance and stability.
Long trips without frequent stops for refilling are made possible by a large fuel capacity of 20 gallons and a reserve capacity of 3 liters. Together, these features provide a flexible and adaptive riding experience, which sets this motorbike apart for riders looking for a well-balanced combination of performance and usability.
Other Specifications
We are pleased to present our extensive selection of bikes, which come in four chic color combinations: white, red, blue, and grey. These motorcycles have an effective electronic starter that makes starting them straightforward. Whether you’re partial to a sleek Grey, a vibrant Red, a cool Blue, or a classic White, our bikes provide dependable performance and a customized look to fit your taste.
Benelli 2023 TRK 502 Adventure Bike – Technical Specifications
Engine and transmission
| Displacement | 499.6 ccm (30.49 cubic inches) |
| Engine type | Twin, four-stroke |
| Power | 47.6 HP (34.7 kW)) @ 8500 RPM |
| Torque | 45.0 Nm (4.6 kg-m or 33.2 ft. lbs) @ 5000 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 69mm x 66.8 mm (2.7 inches x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Electronic fuel injection including throttle body ø 37 mm. |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Delphi MT05 |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet |
| Fuel consumption | 3.90 liters/100 km (25.6 km/l or 60.31 mpg) |
| Greenhouse gases | 90.5 CO2 g/km. (CO2 – Carbon dioxide emission) |
| Emission details | Euro 4. Catalytic converter and oxygen sensors. |
Chassis, suspension, brakes and wheels
| Frame type | Trestle in steel tubes |
| Front Suspension | Adjustable Upside-down forks 50mm |
| Front-wheel travel | 135 mm (5.3 inches) |
| Rear Suspension | Rear swing arm including central shock absorber spring preload adjustable |
| Rear wheel travel | 45 mm (1.8 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 160/60-ZR17 |
| Front brakes | Double disc. 4-piston, ABS |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Single piston caliper, ABS |
| Diameter | 260 mm (10.2 inches) |
| Wheels | Aluminum alloy (optional aluminum rim spoked ) |
Physical measures and capacities
| Dry weight | 213.0 kg (469.6 pounds) |
| Power/weight ratio | 0.2235 HP/kg |
| Seat height | 800 mm (31.5 inches). If adjustable, lowest setting. |
| Alternate seat height | 825 mm (32.5 inches) If adjustable, highest setting. |
| Overall height | 1235 mm (48.6 inches) |
| Overall length | 2170 mm (85.4 inches) |
| Overall width | 912 mm (35.9 inches) |
| Ground clearance | 190 mm (7.5 inches) |
| Wheelbase | 1525 mm (60.0 inches) |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Reserve fuel capacity | 3.00 litres (0.79 US gallons) |
Other specifications
| Color options | White, Red, Blue, Grey |
| Starter | Electric |
Conclusion
The new Benelli 2023 TRK 502 Adventure Bike is the ideal combination of strength, efficiency, and environmental awareness. A sporty and well-balanced riding experience is guaranteed by its powerful engine, cutting-edge chassis, and well-considered design features. Offering a variety of fashionable color choices, it gives each rider a unique touch. Select excellence and select Benelli.
