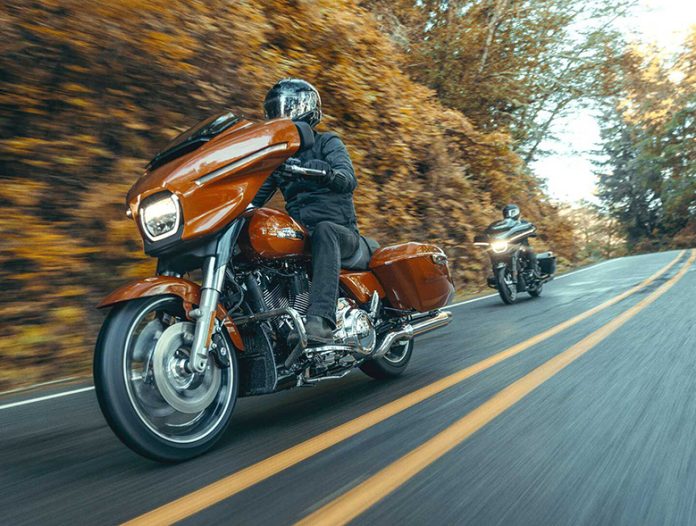

The 2024 Harley-Davidson CVO Street Glide Cruisers redefine performance, comfort, and innovation. The formidable Milwaukee-Eight VVT 121 engine powers them. Their striking design embodies Harley-Davidson’s Grand American Touring heritage while introducing advanced technology and a bold new aesthetic.
Initially introduced in 2023, the 2024 Harley-Davidson CVO Street Glide Cruisers and 2024 Harley-Davidson CVO Road Glide models significantly evolved the Grand American Touring lineup. These models set a new standard, featuring the Milwaukee-Eight VVT 121 engine, refined suspension, and the Skyline OS infotainment system. The 2024 edition carries forward all these exceptional features while offering fresh color options.
2024 Harley-Davidson CVO Street Glide Cruisers – Features and Specs
Batwing Fairing
The legendary batwing fairing has been reimagined with a sculpted profile, integrated LED lighting, and a split-stream vent. Using computational fluid dynamics (CFD), the new design enhances aerodynamics and rider comfort while preserving its classic look.
Also Read: 2024 Harley-Davidson CVO Pan America Touring Bike Review
Signature LED Lighting
A seamlessly integrated full-LED lighting system improves visibility and incorporates turn signals, complementing the batwing fairing’s bold aesthetic for a distinct, recognizable look, day or night.
Wheels
Equipped with 19-inch Front and 18-inch rear Combo Cast Laced wheels, the 2024 Harley-Davidson CVO Street Glide Cruisers also features a Tire Pressure Monitoring System (TPMS) for enhanced safety and performance.
Flow State
Every surface of the 2024 Harley-Davidson CVO Street Glide Cruisers has been meticulously refined using wind tunnel analysis, ensuring a smooth visual transition from the front fender to the saddlebags for an aerodynamic, flowing design.
Saddlebags
Blending seamlessly with the fuel tank and fairing, the saddlebags provide increased storage capacity while maintaining the bike’s aggressive stance and athletic profile.
Also Read: 2024 Harley-Davidson CVO Road Glide ST Cruisers Review
25TH Anniversary Paint & Finishes
Available in Copperhead with Warm-Shift pinstripes or Legendary Orange with Raven Metallic and Atlas Silver accents, this model showcases color-matched components, exclusive CVO graphics, and a 25th Anniversary engraved console insert.
Milwaukee-Eight VVT 121 V-Twin Engine
As the most potent factory-installed engine on a 2024 Harley-Davidson CVO Street Glide Cruisers, the Milwaukee-Eight VVT 121 features liquid-cooled cylinder heads, variable valve timing (VVT), and a redesigned intake for improved power, torque, and fuel efficiency.
Reduced Weight
With a 31-pound weight reduction compared to the 2022 model, the 2024 Harley-Davidson CVO Street Glide Cruisers delivers enhanced acceleration, handling, and braking performance.
Aerodynamics
A wind tunnel-developed fairing and windshield reduce buffeting, while adjustable air vanes fine-tune airflow for improved rider comfort on long journeys.
Suspension
Premium inverted 47-mm SHOWA forks and high-performance shocks provide three inches of suspension travel for superior handling and ride quality.
Exhaust
Featuring 4.5-inch mufflers, the high-flow exhaust system optimizes engine performance while delivering an aggressive yet refined sound.
Brakes
Radially mounted four-piston Brembo calipers in the Front and a single four-piston Brembo caliper in the rear ensure precise, powerful braking performance.
Also Read: Top Ten Heaviest Bikes in the World
Skyline OS
The customizable infotainment system includes navigation, three display modes, and a connected suite of features powered by Skyline OS.
Ride Modes
Standard and customizable ride modes adapt power delivery, engine braking, and safety features for diverse riding conditions.
12.3-Inch TFT Display
A crystal-clear, 12.3-inch touchscreen display provides seamless access to navigation and infotainment.
2024 Harley-Davidson CVO Street Glide Cruisers – Price
The 2024 Harley-Davidson CVO Street Glide Cruisers is available for $44,499, combining cutting-edge technology, superior performance, and an iconic Harley-Davidson design.
2024 Harley-Davidson CVO Street Glide Cruisers – Technical Specifications
Dimensions
| Length | 94.9 in. (2,410 mm) |
| Overall Width | 38.4 in. (975 mm) |
| Overall Height | 53.2 in. (1,350 mm) |
| Seat Height, Laden | 26.7 in. (678 mm) |
| Seat Height, Unladen | 28 in. (711 mm) |
| Static Ground Clearance | 5.5 in. (140 mm) |
| Rake (steering head) (deg) | 26 |
| Fork Angle (deg) | 30 |
| Trail | 6.7 in. (170 mm) |
| Wheelbase | 64 in. (1,625 mm) |
| Tires, Type | Dunlop® Harley-Davidson Series, bias blackwall Front and rear |
| Tires, Front Model | D408F |
| Tires, Front Specification | 130/60B19 M/C 61H |
| Tires, Rear Model | D407T |
| Tires, Rear Specification | 180/55B18 M/C 80H |
| Fuel Capacity | 6 gal. (22.7 l) |
| Reserve Fuel Capacity, Fuel Injection (warning light) | 1 gal. (3.8 l) |
| Oil Capacity (w/filter) | 5 qt. (4.7 l) |
| Transmission Capacity | 1 qt. (.95 l) |
| Primary Chain Case Capacity | 1.1 qts. (1 l) |
| Coolant Capacity | 0.82 qt. (0.78 l) |
| Weight, As Shipped | 800 lb. (363 kg) |
| Weight, In Running Order | 838 lb. (380 kg) |
| Gross Vehicle Weight Rating | 1,360 lb. (617 kg) |
| Gross Axle Weight Rating, Front | 500 lb. (227 kg) |
| Gross Axle Weight Rating, Rear | 927 lb. (420 kg) |
| Luggage Capacity -Volume | 2.2 cu ft (0.062 m3) |
Engine
| Engine | Milwaukee-Eight® VVT 121 |
| Valves | Pushrod-operated, overhead valves including hydraulic, self-adjusting lifters; four valves per cylinder |
| Bore | 4.075 in. (103.5 mm) |
| Stroke | 4.625 in. (117.5 mm) |
| Displacement | 121 cu in (1,977 cc) |
| Compression Ratio | 11.4:1 |
| Fuel System | All-new ESPFI – Electronic Sequential Port Fuel Injection |
| Air Cleaner | Synthetic Felt, Washable |
| Exhaust | 2-1-2 dual exhaust |
| Lubrication System | Pressurized, dry-sump |
Drivetrain
| Primary Drive | Chain, 34/46 ratio |
| Final Drive | Belt, 32/68 ratio |
| Clutch | Mechanically actuated 10 plates, wet Assist & Slip |
| Transmission | 6-Speed Cruise Drive® |
| Gear Ratios | 9.593 |
| Gear Ratios | 6.65 |
| Gear Ratios | 4.938 |
| Gear Ratios | 4 |
| Gear Ratios | 3.407 |
| Gear Ratios | 2.875 |
Chassis
| Frame | Mild steel; tubular frame, 2-piece stamped & welded backbone; cast & forged junctions; twin down tubes; bolt-on rear frame featuring forged fender supports; MIG welded. |
| Swingarm | Mild steel, 2-piece drawn & welded section; forged junctions; MIG welded |
| Front Fork | 47 mm Inverted 1×1 Front Forks. |
| Rear Shocks | Dual adjustable emulsions suspension with remote preload adjustment on the left shock and threaded preload on the right shock |
| Wheels, Optional Style Type | N/A |
| Wheels, Front Type | Combo Cast Laced |
| Wheels, Front Diameter | 19 in. (483 mm) |
| Wheels, Front Width | 3.5 in. (89 mm) |
| Wheels, Rear Type | Combo Cast Laced |
| Wheels, Rear Diameter | 18 in. (457 mm) |
| Wheels, Rear Width | 5 in. (127 mm) |
| Brakes, Caliper Type | 32 mm, 4-piston fixed dual radially mounted Front, and single axially mounted rear |
| Brakes, Rotor Type | Dual floating rotors (Front), fixed rotor (rear) |
| Brakes, Front Diameter | 12.6 in. (320 mm) |
| Brakes, Front Thickness | 0.18 in. (4.5 mm) |
| Brakes, Front is dual | Yes |
| Brakes, Rear Diameter | 11.8 in. (300 mm) |
| Brakes, Rear Thickness | 0.28 in. (7.1 mm) |
| Brakes, Anti-Lock Braking System (ABS) | Standard |
| Suspension Travel, Front | 4.6 in. (117 mm) |
| Suspension Travel, Rear | three in. (76 mm) |
Performance
| Engine Torque Testing Method | J1349 |
| Engine Torque | 139 ft-lb (189 Nm) |
| Engine Torque | 3000 |
| Power | 115 HP / 86 kW @ 4500 rpm |
| Lean Angle Testing Method | J1168 |
| Lean Angle, Right (deg.) | 32 |
| Lean Angle, Left (deg.) | 32 |
| Fuel Economy Testing Method | Estimated City/Hwy |
| Fuel Economy | 45 mpg (5.1 l/100 km) |
| CO₂ Emissions Testing Method | N/A |
| CO₂ Emissions | N/A |
Electric
| Battery | Sealed, maintenance-free, 12V, 28-amp/hour, 405 cca (per Battery Council International Rating) |
| Charging | Three-phase, 58-amp system (754W max power @ 13V) |
| Starting | 1.6 kW electric including solenoid shift starter motor engagement |
| Lights (as per country regulation), Headlamp | LED |
| Lights (as per country regulation), Tail/Stop | LED |
| Lights (as per country regulation), Front Signal Lights | LED |
| Lights, Rear Turn Signals | LED |
| Gauges | Digital gauges integrated within the display |
| Auxiliary Lamps | N/A |
| Electric Power Outlet | 15 Watt USB-C electric power accessory port in a media storage box. |
| GPS System | Yes, imbedded navigation system with real-time traffic and weather via Wi-Fi Hotspot |
| Reverse Gear | N/A |
Warranty And Service
| Warranty | 24 months (unlimited mileage) |
| Service Interval | First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter |
