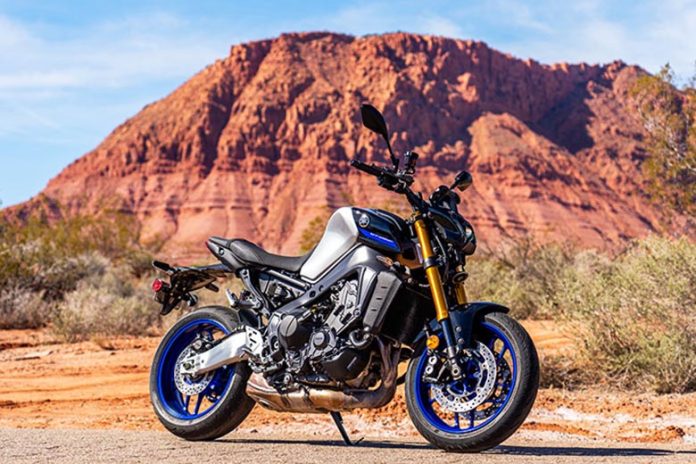

2023 Yamaha MT-09 SP Sports Bike Review Specs Price

Experience the class-dominating middleweight masterpiece from the Darkness with superior KYB and Öhlins suspension, distinctive, limited edition colors, and a cruise control system. Since 2013, Yamaha’s “hyper naked” MT series has been inspired by the Dark Side of Japan, offering thrill-seeking motorcycle riders in Canada and abroad an entirely new excitement and dynamism. The 2023 Yamaha MT-09 SP Sports Bike has a sporty, supersport-inspired finish, a top-notch suspension system, and cruise control for riders who want the best specifications.

Japan’s Dark Side is constantly awake. Every Yamaha MT is inspired by it, and the MT-09 SP is the most recent CP3 masterpiece to come out of the shadows. The ultimate 3-cylinder Hyper Naked is prepared to amaze and inspire with its superior suspension, upgraded rider aids, and distinctive R1M-inspired colors. Its R1-type 6-axis IMU and lean-sensitive electronic rider aids provide precise control in wet and dry conditions.

At the same time, its 890cc EU5 CP3 engine generates even more linear torque at lower rpm for fantastic acceleration. Additionally, the 2023 Yamaha MT-09 SP Sports Bike’s chassis is sharper than ever thanks to its highly specified Öhlins rear shock and completely adjustable 41mm front forks.

The 2023 Yamaha MT-09 SP Sports Bike has a unique double-stitched seat for the best fit in addition to the distinctive Icon Performance colors. The new brushed anodized swingarm, anodized black handlebars and levers, and clear-smoked brake reservoirs further enhance the model’s luxury appearance and feel.

2023 Yamaha MT-09 SP Sports Bike – Features and Specs

Powerful 890cc Liquid-Cooled Three-Cylinder DOHC Fuel-Injected Engine

The well-known 890cc liquid-cooled CP3 engine powers the 2023 Yamaha MT-09 SP Sports Bike. Outstanding torque and exciting power delivery characteristics are provided by the 78 mm × 62.1 mm bore and stroke and an 11.5:1 compression ratio. An impressive 49 MPG results from its remarkable combustion efficiency and lightweight design.

Also Read: 2023 Yamaha MT-09 Sports Bike Review

Lightweight Forged Pistons

Smooth, high-revving power is made possible by the lightweight forged pistons.

Fracture-Split Connecting Rods

To guarantee unmatched manufacturing accuracy, the forged connecting rods are created utilizing the fracture-split process, in which the connecting rod’s big-end ring is intentionally broken and then put back together. When the rods are re-bolted around the crankshaft, a set of precisely matched halves yields a far more accurate mating surface.

Offset & Direct-Plated Cylinders

The CP3 engine’s three-cylinder bores are positioned forward and toward the exhaust side. While the direct-plated ceramic-composite cylinder bores offer superior heat dissipation and less friction, this offset lowers the friction between the new piston and an all-new cylinder wall, producing greater power and better fuel efficiency.

Intake System Tuned for Sound & Performance

The intake system responds linearly when the rider opens and shuts the throttle. The superb engine sound at middle and high rpm is partly a result of the three intake ducts. For the intake sounds that each of these ducts produces to resonate harmoniously at different wavelength ranges, they are built with variable cross-sections and lengths.

The sound pressure has also been adjusted simultaneously to provide excellent sound in the mid- and high-rpm range. The end product is an air cleaner box that produces a pleasant sound that improves the sensation of acceleration and has and has high intake efficiency.

Assist & Slipper Clutch

The MT-09 SP incorporates an assist and slipper (A&S) clutch for better chassis response and lighter clutch lever pull during downshifts.

Lightweight Aluminum Frame

The lightweight aluminum frame of the 2023 Yamaha MT-09 SP Sports Bike exemplifies the MT’s distinctive “agility.” The longitudinal, lateral, and torsional stiffness balance has been enhanced to guarantee handling performance and straight-line stability.

Most significantly, lateral stiffness has been raised by around 50% for even more excellent straight-line stability. The 2023 Yamaha MT-09 SP Sports Bike’s lightweight design results from the frame’s construction utilizing Yamaha’s most recent controlled filling (CF) die-casting technology.

Aluminum Die Cast Subframe

The 2023 Yamaha MT-09 SP Sports Bike’s distinctive sense of agility is due to its controlled filled aluminum die-cast subframe, which lowers weight.

Lightweight, High-Rigidity Swingarm

The swingarm is made of an aluminum plate shaped like a welded box to achieve high stiffness and low weight. The swingarm pivot component of the MT-09 SP attaches externally to the frame. The 2023 Yamaha MT-09 SP Sports Bike’s slender feel is made possible by its superb chassis and careful engineering of the forms of the elements and components surrounding the seat, which also provides excellent straight-line stability at high speeds and improved turning stability.

Lightweight Spin Forged Aluminum Wheels

The wheels of the 2023 Yamaha MT-09 SP Sports Bike are lightweight. They are made with a spin forging technique exclusive to Yamaha, which enhances handling. These wheels further enhance the Yamaha 2023 MT-09 SP’s nimble handling style, significantly reducing the momentum of inertia in the back by 11%.

Adjustable Riding Position

The riding posture was created to accommodate riders with different body types. Thanks to the two adjustable handlebar and footpeg configurations, riders may choose a position that makes them feel confident as soon as they get on the bike. The footpeg mounts may be lifted 14 mm higher and 4 mm backward, while the handlebar clamps can be turned 10 mm forward.

Premium KYB® & Öhlins® Suspension

The KYB® front suspension of the 2023 Yamaha MT-09 SP Sports Bike has independent compression and rebound damping adjustments on each side. Additionally, motorcyclists can pick from more precise settings by adjusting the compression damping at high and low speeds.

The DLC coating on the 41mm inner tubes enhances the exterior’s high-quality look while also offering superior sliding properties. The 2023 Yamaha MT-09 SP Sports Bike’s rear shock completes this class-leading suspension setup, which has a high-end Öhlins® shock absorber with a remote preload adjustment.

Next-Generation Design

By highlighting the bike’s inherent power, the 2023 Yamaha MT-09 SP Sports Bike’s designers aimed to convey the machine’s significant performance improvements more effectively. To emphasize lightness and quickness and mimic the rider’s senses, the minimalist design idea creates an exterior with everything save the necessities removed.

Unique SP Styling

The bike’s pure mechanical beauty is highlighted by the MT-09 SP’s unique colors and graphics, a striking seat cover with chic, contrasting stitching, a clear-coated silver swingarm, and clear-smoked front and rear brake fluid reservoirs. These characteristics highlight the 2023 Yamaha MT-09 SP Sports Bike’s excellent craftsmanship and connect the bike to the colorway specific to the MT-10 SP and YZF-R1M. To further enhance the MT-09 SP’s look and offer the rider a sense of unity with the bike, the levers, handlebars, and drive sprocket are all sleek black.

Full LED Lighting

The 2023 Yamaha MT-09 SP Sports Bike has a small, well-designed, bifunctional (low and high beam in one) LED headlamp with good beam spread. The beam’s edges emit a gentle and uniform illumination distribution with a softer contrast, making them more accessible to the eyes.

This bike uses a projector design with an integrated internal lens in addition to the thick outer lens as an alternative to the traditional “mono-focus” style of headlight. The MT-09 SP can project a complicated illumination distribution across a vast region because it employs many LEDs to create light instead of just one. While the turn signals and taillight are also LED, the position lights use LEDs and light guides to create an eye-catching, unique front-face appearance for the MT-09 SP.

Advanced Six-Axis IMU

Due to a careful examination of the sensor arrangement, the 2023 Yamaha MT-09 SP Sports Bike boasts an improved six-axis Inertial Measurement Unit (IMU) that is 40% lighter and 50% smaller while maintaining the foundational performance of the YZF-R1‘s established IMU. Three rider aids are included with the engine control unit (ECU), which collects and reflects the data from the IMU: a front-wheel LIFt control system (LIF), a slide control system (SCS), and a traction control system (TCS). The three systems enable the rider to focus on riding and maximize the machine’s capability. Additionally, each system’s degrees of intervention may be changed to suit individual preferences and switched on or off.

Brake Control System with ABS

In order to independently manage and modulate the front and rear brake pressure, the Brake manage (BC) system uses data from the IMU and the front and rear wheel speeds to compile and compute data in real-time in the hydraulic unit assembly, which includes the ABS control unit.

There are two intervention options available to the rider: BC1 and BC2. While BC2 regulates the brake pressure in addition to ABS and functions in circumstances where machine behavior is likely to become unstable, such as inevitable panic braking in mid-corner, BC1 is a standard ABS-active mode that allows for hard emergency braking in upright, straight-line braking conditions.

Full-Color 3.5-inch TFT Instrument Display

The 2023 Yamaha MT-09 SP Sports Bike’s 3.5-inch full-color TFT display includes a gearshift indication (the color is reversed for the gear in use), a clock, and displays for average mileage, water, and air temperatures, a bar-type tachometer that changes colors as rpm climbs or falls, and more. The handlebar switches make it simple to switch between information and displays.

Cruise Control

The 2023 Yamaha MT-09 SP Sports Bike has a cruise control system for ease of riding. Cruise control can be used when traveling at least 31 mph (50 kph) and in fourth gear or above. Once the cruising speed has been selected, it may be changed by pressing the switch once or by holding it down continuously in increments of 1 mph (or two kph). Use the clutch, throttle, or brake to turn off cruise control. The “Resume” feature returns the bike’s initial speed by re-engaging the mechanism.

2023 Yamaha MT-09 SP Sports Bike – Price

The new 2023 Yamaha MT-09 SP Sports Bike is available for $11,499 only.

2023 Yamaha MT-09 SP Sports Bike – Technical Specifications
