Since Suzuki invented the 4-wheel ATV, they’ve made a sports-utility quad with striking style and more excellent capability and durability than ever before. The renowned KingQuad’s heritage is still new and vibrant, and it’s waiting for you to join it. Every KingQuad model is simple to ride and has features that no other brand can match.

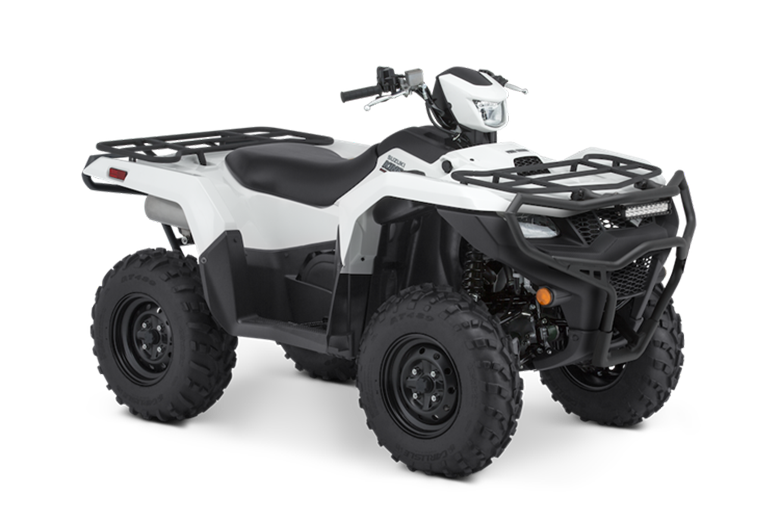

2020 KingQuad 500AXi Power Steering RP Suzuki Utility ATV – Features and Price
Key Features
With its low-effort electronic power steering and sharp design, this motorcycle exudes confidence. An outstanding towing capacity thanks to its independent suspension, as well as its ability to handle any terrain. QuadmaticTM gearbox with excellent engine braking and a torque-rich EFI-fed engine Full LCD instrument panel, an LED taillight, and fenders-mounted headlights. The LED light bar is securely held in place by the rugged package bumpers.
Engine Features
The 493cc SOHC, single-cylinder, liquid-cooled, four-stroke engine is optimized to deliver a broad powerband with excellent top-end power. To keep the vehicle’s center of gravity as low as possible, the engine’s head and cylinder are canted forward. To ensure smooth functioning, the engine is equipped with a balancer shaft. The vast intake valves and straight intake ports of the small four-valve cylinder head deliver excellent cylinder charging efficiency. Preserving valves is made more accessible by using screw and nut lash adjusters.
The SCEM (Suzuki Composite Electrochemical Material) coat on a lightweight aluminum cylinder offers exceptional heat transmission and ring sealing, ensuing in a very efficient combustion chamber. Throttle responsiveness and fuel economy are enhanced, power is delivered consistently throughout the rev range, and engine starting is improved under all situations thanks to Suzuki’s Advanced Fuel Injection.
KingQuad ATV models that meet California’s strict evaporative emissions standards, for example, have no problem meeting US emissions regulations. An aluminum radiator with an extensive diameter, thermostatically-controlled cooling fan ensures a consistent engine operating temperature.
Transmission Features
The QuadmaticTM CVT-type automatic gearbox delivers Fender-mounted gate shifters for high/low range selection. This vehicle’s cutting-edge engine-braking mechanism helps keep it under control on steep descents by reducing free-wheeling when the throttle is off.
Torque-sensing limited-slip front differential offers powerful traction while maintaining light steering. 4WD traction may be gained using a differential-lock system. Push-button controls on the handlebars allow easy selection between 2WD, 4WD, and differential-lock 4WD. When removing the bike from mud, an override button on the left handlebar may be used to bypass the standard speed limits.
Chassis Features
Improved rider comfort, simplicity of use, and towing capacity are all facilitated by the KingQuad’s frame, which has thick-wall tubes and strengthened brackets in essential sections.
To minimize steering effort and improve tight-turning performance, the steering’s essential characteristics have been adjusted to an “under-steer” state. It makes it possible to utilize handlebars that are taller and more comfortable. Electric power steering on the KingQuad is more potent than ever before, reducing steering effort and minimizing vibration and jolts for the rider.
High-clearance fenders provide excellent protection for the rider from flying debris. Maintenance tasks such as checking the oil level and changing the fuel and air filters are more manageable with refined panels. Large diameter, gas-charged shock absorbers featuring five-way spring preload adjustment are part of the independent double A-arm front suspension having 6.7 inches of wheel travel.
Large diameter gas-charged shock absorbers with five-way adjustable spring preload are part of the A-arm/I-beam rear suspension’s 7.7-inch wheel travel. Complimentary bushings on a large-diameter rear stabilizer bar assist the rider in sustaining body control while decreasing shock.
High-friction braking pads, fluid lines, and a lever ratio all work together to deliver the best possible braking performance. The lever ratio of the sealed multi-plate rear brake system offers excellent rider control. Because of the clutch-type structure, the rear brakes are long-lasting, light, and easy to maintain.
The 25-inch Carlisle tires provide excellent grip, and they’re mounted on steel wheels that are powder-coated matte black for long-lasting durability. The T-shaped seat of Suzuki’s motorcycles provides the rider with more movement in lively or rough terrain.
Polyethylene skid plates defend against pebbles and uneven terrain with low resistance. Sturdy plastic shields protect the new front and rear half shafts. To create the robust, angular designs seen on both the front and rear bumpers of the Rugged Package, oversized diameter steel tubing was used. The bumpers are powder-coated in a black wrinkle finish to match the KingQuad’s steel racks, adding flair and practicality.
Utility Features
Headlights mounted to the handlebars of an ATV illuminate the path in the direction of travel. The KingQuad’s distinctive bodywork includes dual 35-watt headlights (with high- and low-beam settings).
It’s mounted to the front bumper, and the LED light bar is positioned at the perfect height and angle to brighten the trail with 2,700 lumens. A handlebar-mounted switch lets the rider quickly adjust the light bar’s brightness.
The ATV’s brilliant LED tail light uses less electricity and is more noticeable at night. To make the most of the KingQuad 500AXi Power Steering RP Suzuki Utility ATV’s large towing capability, a receiver-type trailer hitch addition is included (up to 1322 pounds). Wire conduit and Winch-ready mounts make installing a winch a cinch.
The dashboard’s design and visibility have been enhanced, and servicing reminders based on running time or distance have been added. A speedometer, odometer, twin-trip metre, hour metre, clock and fuel level display are all included in the instruments. High, low, neutral, reverse and 2WD/4WD LED indications and LED warnings for fuel injection and engine temperature are all included. 2WD/4WD and differential-locked 4WD also have LED indicators.
An 18-amp maintenance-free battery is served by a high-output, three-phase charging system for simple starting and accessory usage. In every home, there’s a brand new built-in 12V auxiliary outlet.
The 4.6 gallons (17.5 liters) gasoline tank is positioned low in the vehicle to preserve the center of gravity as low as possible. Vacuum-operated petcock and ratchet-style filler cap are part of the package.
In addition to the current left-side 4-liter storage compartment, an additional huge 4.0-liter storage compartment is situated in the center of the ATV’s back, allowing plenty of room for goods. A simple screw-on lid provides easy access to the water-resistant 2.8-liter front storage container. The durable and scratch-resistant wrinkle paint finish on the steel-tube cargo racks adds further toughness. To keep your feet safe, the floors have incorporated elevated footpegs. These include winches, windshields, and front and rear bumpers as well as quick-release snowplows, metal skid pans, and rack extensions.
Special Features
Limited 12-month warranty. Suzuki Extended Protection compromises extended coverage terms and additional advantages (SEP).
Minimum Operator Age: 16 Years Old
2020 KingQuad 500AXi Power Steering RP Suzuki Utility ATV – Price
The new 2020 KingQuad 500AXi Power Steering RP Suzuki Utility ATV is available at $9,349 only.
2020 KingQuad 500AXi Power Steering RP Suzuki Utility ATV – Technical Specifications
Engine
| Type | 493cc (30.1 cubic inches), 4-stroke, liquid-cooled, 4-valve, OHC single cylinder |
| Bore x Stroke | 87.5 mm x 82 mm (3.4 inches x 3.2 inches) |
| Compression Ratio | 9.9:1 |
| Fuel System | Suzuki electronic fuel injection |
| Starter | Electric |
| Lubrication | Wet sump |
Drive Train
| Transmission | Automatic variable ratio (V-belt), having high/low-range and reverse |
| Clutch | Dry shoe, automatic, centrifugal type |
| Driven Wheels | 2WD, 4WD, and 4WD Differential Lock |
| Final Drive | Shaft drive |
Chassis
| Front Suspension | Independent, double wishbone, gas-charged, coil spring, and oil damped, including 5-way preload adjustable shock absorbers |
| Rear Suspension | Independent, double wishbone, gas-charged, coil spring, and oil damped, including 5-way preload adjustable shock absorbers |
| Front Brakes | Disc brakes, twin rotors |
| Rear Brakes | Sealed oil-bathed multi-disc |
| Front Tires | AT25 x 8-12, tubeless type x 2 |
| Rear Tires | AT25 x 10-12, tubeless type x 2 |
| Fuel Tank Capacity | 17.5 Liters |
| Color | Flame Red, Terra Green, or Solid Special White No. 2 |
Electrical
| Ignition | Electronic ignition (transistorized) |
| Headlight | 12V 35/35W x 2 fender-attached, 12V 35W x 1 handlebar-mounted |
| Tail Light | LED |
Dimensions
| Overall Length | 2255 mm (88.8 in.) |
| Overall Width | 1215 mm (47.8 in.) |
| Overall Height | 1285 mm (50.6 in.) |
| Wheelbase | 1285 mm (50.6 in.) |
| Ground Clearance | 260 mm (10.2 in.) |
| Seat Height | 920 mm (36.2 in.) |
| Curb Weight | 337 kg (744 lb.), 339 kg (747 lb.) CA model |
Warranty
| Warranty | 12-month limited warranty |
| Extension | Coverage extension and additional benefits are available |
Conclusion
There are fender-mounted gate shifters for the Quadratic CVT automatic gearbox. Suzuki has produced a sports utility quad that is more capable and durable. Elegant and effortless electric power steering. Minimum Age: 16 Price: $9,349
