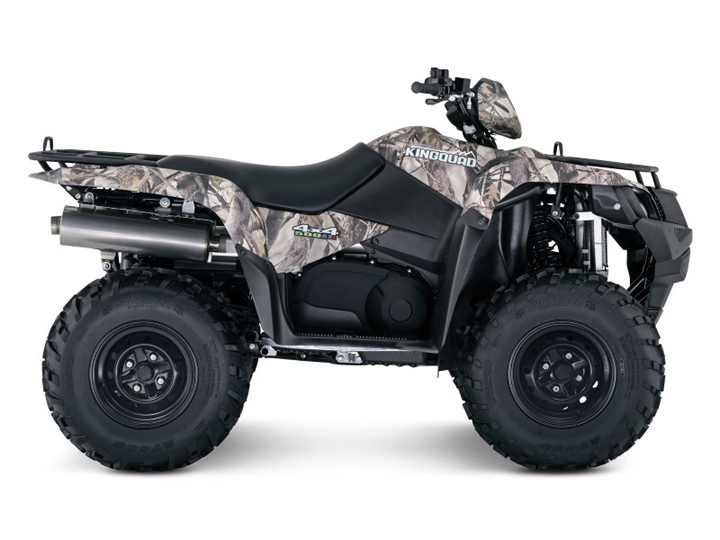

The new 2017 Suzuki KingQuad 500AXi Camo is a powerful ATV, which is incredibly designed and has impressive graphics that Suzuki Brand has ever made. Suzuki Company was well-known ATV manufacturer since 1983 when it launched its first 4-sheel ATV. The new 2017 Suzuki KingQuad 500AXi Camo comes with the technologically advanced features which are very helpful when riding on the steep slope. The quad bike is equipped with the EFI equipped engine which utilizes multi-hole fuel injector that provides the exceptional performance. The new2017 Suzuki KingQuad 500AXi Camo has advanced chassis which makes the ride more pleasant and less fatigue. The bike has quickly moved over different obstacles, rough surfaces, and mountains with much ease. The review of new 2017 Suzuki KingQuad 500AXi Camo with specification and price is written below.
2017 Suzuki KingQuad 500AXi Camo – Specification and Price
Engine
The new 2017 Suzuki KingQuad 500AXi Camo has a powerful engine of 493 ccs SOHC engine. The engine of the quad bike contains single cylinder which is liquid cooled with four-stroke technology; this engine delivers an enormous power with full power band with the high top end power. The new 2017 Suzuki KingQuad 500AXi Camo has a new Suzuki fuel injection system and twin iridium spark plugs which ensure a smooth start, maximum throttle response, and superb fuel efficiency. The cylinder of the engine is canted forward for the low center of gravity which results in the reduction of engine height and lowers the seat height. For smoother operation, the engine has a counter balancer shaft as well. The new quad bike has a compact four-valve cylinder head which has large intake valves and excellent straight intake ports for maximum cylinder charging efficiency. The new 2017 Suzuki KingQuad 500AXi Camo has a lightweight aluminum cylinder which has a special coating of the particular material SCEM (Suzuki Composite Electrochemical Material) for best transfer of heat and sealing of rings results in maximum combustion chamber efficiency. The radiator of the ATV is high capacity with a large diameter which is thermostatically controlled individual cooling fan which provides stable engine operating temperature.
Transmission
The new 2017 Suzuki KingQuad 500AXi Camo has QuadMatic™ CVT-type automatic transmission which provides versatility and convenience with the new fender installed gate type shifter for low or high selection of range. The quad bike has advanced braking system which minimizes freewheeling with the throttle off, and it helps in controlling the vehicle during the steep descent. The new 2017 Suzuki KingQuad 500AXi Camo quad bike has a small torque sensing limited slip front differential which offers reliable traction with light steering. The differential lock system also provides serious four-wheel drive traction. The handlebars come with the push button control which allows for easy selection between the 2WD, 4WD, and the differential-lock 4 WD. The override switch on the left handlebar is very helpful to replace the standard speed limiter when ATV stuck in the mud.
Chassis
The bike has the independent double A-arm front suspension which has 7.1 inches of wheel travel that includes a large diameter shock absorber with the adjustment of 5-way spring preload. The ATV has fully independent A-arm rear suspension with the 7.9 inches of the wheel travel that includes the shock absorber of large diameter with the 5-way spring preload adjustment and the large diameter rear sway bar. The new 2017 Suzuki KingQuad 500AXi Camo quad bike has a dual hydraulic front disc brakes which have a sealed, multi-plate rear braking system. The design of the rear brake gives high durability, low maintenance, and it also reduces weight. The new 2017 Suzuki KingQuad 500AXi Camo has 12 inches of CARLISLE tires which provide excellent traction and are installed on heavy-duty steel wheels. The new quad bike has a plush T-shaped seat which gives rider mobility during the spirited on challenging terrain riding. The ATV has a polyethylene skid plated which provides better and excellent protection with minimal resistance over rocks and another rough terrain. The durable plastic guards also protect the front and rear half of shaft.
Other features
The new 2017 Suzuki KingQuad 500AXi Camo comes with the number of features which are very helpful in making the ride pleasant and full of fun. The quad bike has a winch-read mounts and wire conduit which makes the winch installation very simple. The new instruments which come along with the new 2017 Suzuki KingQuad 500AXi Camo are LCD readout for speedometer, odometer, clock, fuel level. LED indicators for low, high, neutral and reverse gears. The new 2017 Suzuki KingQuad 500AXi Camo has a distinctively styled twin halogen headlight of 30W with a new compact 5/21W tail light and the brake light as well. The quad bike the three phase charging system with feeds on 18-amp maintenance-free battery for abundant power for easy starting. The new 2017 Suzuki KingQuad 500AXi Camo has a large fuel tank of 17.5 liters which is positioned to have a low center of gravity. The tank also includes vacuum-operated petcock and ratchet-style filler cap. The ATV also comes with the 2.8 liters of water resistant front storage compartment which contains an easy access screw-on cap. The new quad bike has the rugged steel tube cargo holders who have wrinkle paint finish for strength and scratch resistance. The new 2017 Suzuki KingQuad 500AXi Camo comes with the limited warranty of 12 months only. The new quad bike comes with the variety of Suzuki Genuine Accessories which are available including the windshield, rear and front bumpers, aluminum skid pans and much more.
2017 Suzuki KingQuad 500AXi Camo – Price
The new 2017 Suzuki KingQuad 500AXi Camo with a lot of features and powerful engine of493 cc, comes with the price tag of $7,999 only.
2017 Suzuki KingQuad 500AXi Camo – Specs
Engine
| Engine | 493 cc, 4-stroke, liquid cooled, single cylinder, OHC |
| Bore x Stroke | 87.5 mm (3.445 inches) x 82.0 mm (3.228 inches) |
| Compression Ratio | 10.0: 1 |
| Fuel System | Suzuki fuel injection |
| Starter | Electric |
| Lubrication | Wet Sump |
Drive Train
| Transmission | CVT (V-belt), with high/low range and reverse |
| Driven Wheels | 2WD, 4WD & 4WD Differential Lock |
| Final Drive | Shaft drive |
Chassis
| Front Suspension | Independent, double wishbone, coil spring |
| Rear Suspension | Independent, double wishbone, coil spring |
| Front Brakes | Disc brake, twin rotors |
| Rear Brakes | Sealed oil-bathed multi-disc |
| Front Tires | AT25 x 8-12, tubeless type x 2 |
| Rear Tires | AT25 x 10-12, tubeless type x 2 |
| Fuel Tank Capacity | 17.5 Liters |
| Color | True Timber XD3 Camouflage |
Electrical
| Ignition | Electronic ignition (CDI) |
| Headlight | 12V 35/35W (HS1) × 2 |
| Tail Light | 12V 21/5W |
Dimensions
| Overall Length | 2115 mm (83.3 inches) |
| Overall Width | 1210 mm (47.6 inches) |
| Overall Height | 1245 mm (49.0 inches) |
| Wheelbase | 1285 mm (50.6 inches) |
| Ground Clearance | 260 mm (10.2 inches) |
| Seat Height | 920 mm (36.2 inches) |
| Curb Weight | 305 kg (672 lbs) |
Warranty
| Warranty | 12-month, unlimited mileage, limited warranty |
| Extensions | Extensions available through Suzuki Extended Protection (SEP) |
Conclusion
The newly launched 2017 Suzuki KingQuad 500AXi Camo is an incredible quad bike. The color combination and graphics are mind blowing. It has the powerful engine of 493 ccs which produces strong torque and acceleration. The review of 2017 Suzuki KingQuad 500AXi Camo with specification and price are covered under www.bikescatalog.com today. The all-new 2017 Suzuki KingQuad 500AXi Camo is the best ATV Suzuki has launched in the year 2017. So don’t be late and purchase this incredible ATV before it gets too late. And don’t forget to leave your experience about the new 2017 Suzuki KingQuad 500AXi Camo and comments here.
